Root Finding Methods from Scratch in Python

Bisection, Newton's and Secant root-finding algorithms using Python

Root-Finding Methods in Python


Introduction

A numerical rootfinding algorithm iteratively computes better approximations of zeros, also called "roots", of continuous functions.

This article presents the theory behind four standard root-finding algorithms and their implementation in Python from scratch.

Photo by Esther Jiao on Unsplash
Photo by Esther Jiao on Unsplash

Take Equation 1 as an example:

Equation 1 - Sample Function (Image By Author)
Equation 1 – Sample Function (Image By Author)

Figure 1 is a plot of Equation 1 over the interval [-1, 5]. A zero or root is any ** value of x when f(x) equals 0. i.e. the location where the curve moves across the x-axi**s. In this case, a root lies somewhere between x₀ = 1 and __ x₁ = 2.

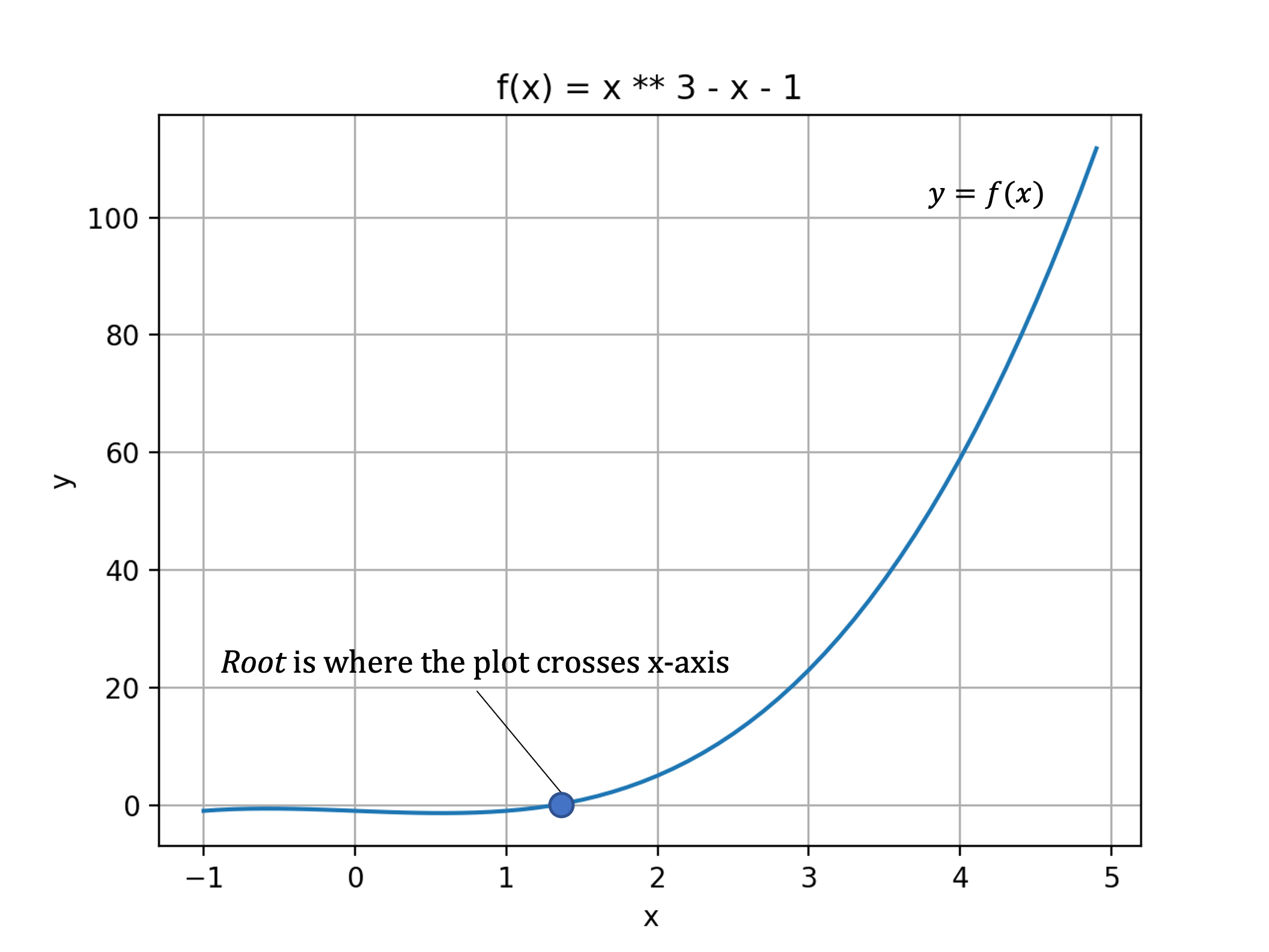

Figure 1 - Plot of Equation 1 (Image By Author)
Figure 1 – Plot of Equation 1 (Image By Author)

The objective of this article is to approximate the root in Python using some numerical operations.

Three methods to achieve this objective are:

  1. Bisection Method
  2. Newton’s method
  3. Secant Method

Bisection Method

The bisection method approximates the roots of continuous functions by repeatedly dividing the interval at midpoints.

The technique applies when two values with opposite signs are known.

If there is a root of f(x) on the interval [x₀, x₁] then f(x₀) and f(x₁) must have a different sign. i.e. f(x₀)f(x₁) < 0.

Review this Intermediate Value Theorem article if necessary.

The Intermediate Value Theorem in Python

Let x₀ and x₁ be the start and endpoints for the estimated interval. Then, use Equation 2 to calculate the midpoint (x₂) between [x₀, x₁].

Equation 2 - Bisection Rule (Image By Author)
Equation 2 – Bisection Rule (Image By Author)

The next guess is either the midpoint of x₀ and x₂ or x₂ and x₁, depending on which side the root falls on. Convergence is slow.

Gist 1 gives an example implementation of the bisection algorithm.

Storing the successive root approximations and plotting Figure 2 illustrates the iterative nature of the algorithm.

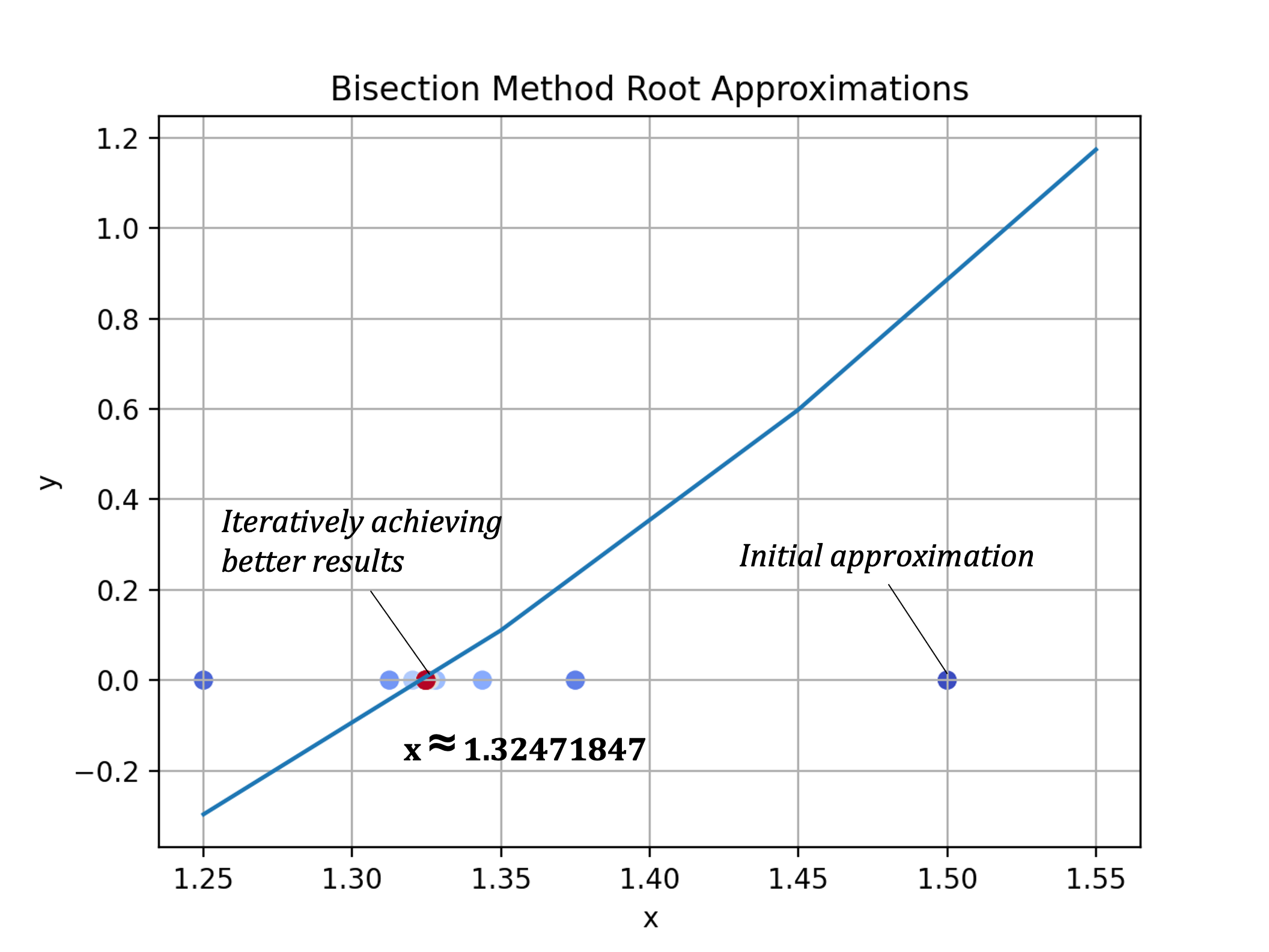

Figure 2 - Iterative Improvement of Bisection Root Estimates (Image By Author)
Figure 2 – Iterative Improvement of Bisection Root Estimates (Image By Author)

Running the bisection method on Equation 1, specifying an interval between [1, 2], returns a solution at x1.324718475. Inspection of Figure 1 tells that this value is around the expectation.

The procedure took around 18 iterations to achieve this result. Estimation improvements occur gradually.

A final note on this algorithm is that it is possible to estimate the minimum number of iterations taken to achieve a specific error bound using Equation 3.

Equation 3 - Number of Iterations (Image by Author)
Equation 3 – Number of Iterations (Image by Author)

x₀ and x₁ are the interval start and endpoints, for example, [1, 2].

Deriving the error bound for Bisection Method

Implement the equation using the Python code in Gist 3.


Newton’s Method

Possibly the most well-known root-finding algorithm, Newton’s method approximates the zeros of real-valued continuous functions. Starting with an initial guess of the solution, Equation 4 iteratively improves the approximation using knowledge of the function and the derivative value at xₙ.

  • n: iteration counter
  • xₙ₊₁: next estimate
  • xₙ: current best estimate
  • f(xₙ): function evaluated at xₙ
  • f'(xₙ): derivative of f at xₙ
Equation 4 - Newton's Method (Image By Author)
Equation 4 – Newton’s Method (Image By Author)

Clearly, this procedure requires the first derivative of f(x), and therefore f(x) must be differentiable.

Gist 3 provides the Python code to implement an iterative solution for Newton’s method. It uses the Sympy library to evaluate f'(xₙ). Upon each pass through the loop, the parameter values are substituted into Equation 1 to determine xₙ₊₁.

A tolerance limit controls when the process breaks, and this condition triggers when f(xₙ) approaches zero.

Like above, saving each __ guess and _plottin_g Figure 3 shows how Newton’s method _approache_s the correct solution.

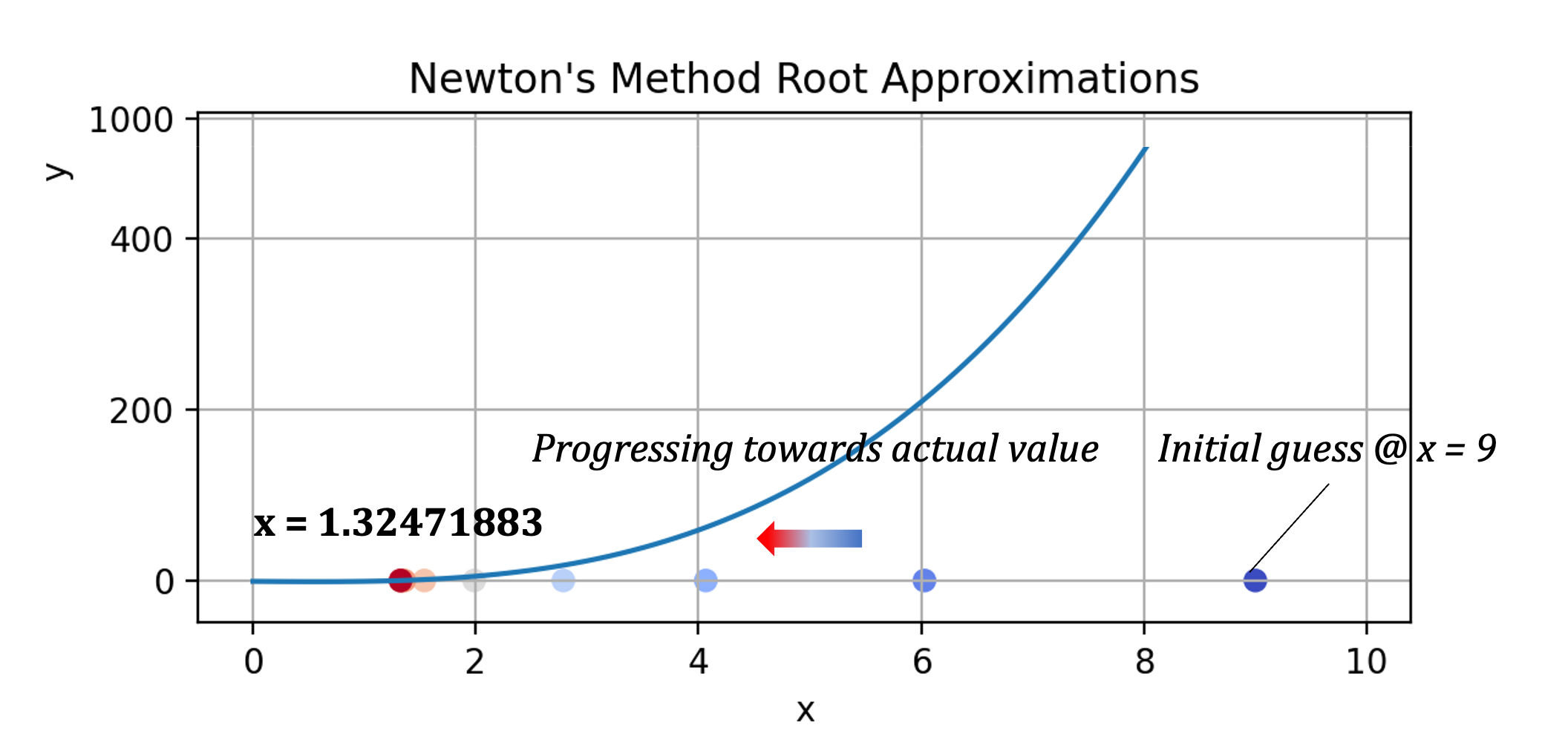

Figure 3 - Improvement of Newton's Zero Guesses (Image By Author)
Figure 3 – Improvement of Newton’s Zero Guesses (Image By Author)

With an initial guess of x = 9, this method returns of f(x) = 0 @ x = 1.324718834. It takes 8 iterations to reach an accuracy of 1e-5.

Newton’s method converges much faster than the bisection method but has limitations depending on the function’s derivative in question.


Secant Method

The secant method is very similar to the bisection method, except instead of dividing at the midpoint, it divides intervals by the secant line connecting the endpoints.

Equation 4 is to be implemented in Python either iteratively or recursively.

Equation 4 - Secant Method (Image By Author)
Equation 4 – Secant Method (Image By Author)

The Python method in Gist 4 recursively solves for roots using the Secant method.

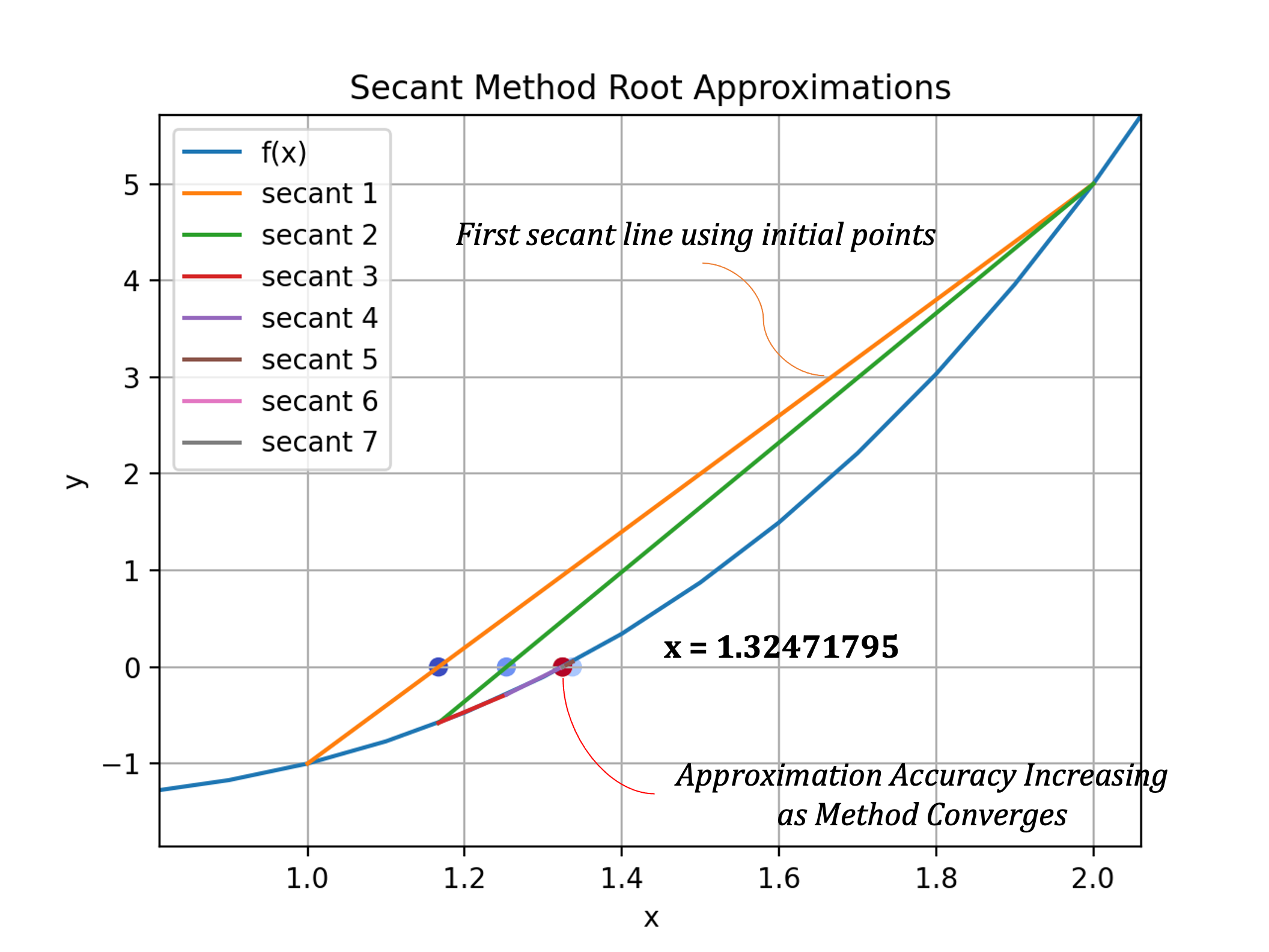

Starting with initial values of x₀ = 1 and x₁ = 2, the procedure outputs a root of f(x) at x = 1.324717957, within 8 recursive calls. Figure 4 visualises the secant lines generated on each pass.

Figure 4 - Secant Method Visualisation (Image By Author)
Figure 4 – Secant Method Visualisation (Image By Author)

The Secant Method is second best to Newton’s Method. It is most applicable for situations requiring faster convergence than Bisection, but it is too difficult or impossible to take an analytical derivative of the function f(x).


Conclusion

Implementing root-finding algorithms is valuable for engineering and mathematics students. Furthermore, there are many other methods that the user can explore and __ expand their knowledge an_d coding skill_s, such as _Brent’_s or _Steffensen’_s method.

If you’re interested in Python, engineering, and Data Science, please follow and check out my other articles.

Join Medium with my referral link – Andrew Joseph Davies

Fundamentals of Matrix Algebra with Python | Part 1


References

[1] Calculus: A Complete Course, 8th Edition – Robert A. Adams, University of North Carolina, Chapel Hill, USA
