PyQt provides a convenient way for relational database data presentation.

Model-View Design Pattern

The QTableView widget is a convenient and flexible way to present Data to the user.

In addition, it can handle relational databases efficiently, and it is needless to emphasize that it fits the Model-View-Controller design pattern perfectly.

We already know how to connect to a database and present data from relational tables.

The most valued benefit is that we needed no SQL language expertise. It is a well-known fact mastering SQL queries is a long-term run.

Why Data Format Matters

Now, let’s make our data more appealing for the human eye.

Data format plays a significant role in data science. It is essential people know what data they are presented to. Without correct formatting, data can’t be used efficiently.

This article is part of PyQt & Relational Databases Series:

PyQt __ & Relational Databases Series

MVC in PyQt

If you are new to Pyqt check out this great book: Mastering GUI Programming with Python: Develop impressive cross-platform GUI applications with PyQt by Alan D. Moore https://amzn.to/3Rq7CM1 (affiliate link).

Model-View-Controller (MVC) is a software design pattern usually used to develop user interfaces to separate the logic between internal information representations (model) and how they are presented (view).

The controller accepts inputs and translates them into instructions for the model or view.

PyQt merges view and controller into one element. When the view and the controller elements are combined into one, the result is model-view design architecture.

PyQt has different model classes and respective view classes. The following table of views shows matching model bases.

Present your data on your own

To have more control over how the data is presented, we will customize the model.

In model-view architecture, to write a custom model, we must subclass an appropriate abstract model.

For our example, the QAbstractTableModel is precisely what we need. However, QAbstractTableModel is an abstract base class known as an interface for those from other programming languages. If you use it directly, it won’t work. The minimum required methods to be implemented for a custom table are data and rowCount.

The data method returns the table data. While the rowCount method must return the dimension of a data source.

Modify the previous code

To return some data from our data method, we need to modify the code we already have. The data will come from our relational data model. Otherwise, we would lose the relational table functionality.

So, instead having view.setModel(model) we go with a new model view.setModel(presentation_model), which will source data from our existing relational table model. The modified code looks like this:

class MainWindow(QMainWindow):
    def __init__(self, parent = None):
        super().__init__(parent)

        self.setWindowTitle('QTableView Example')

        # Setup the model
        model = QSqlRelationalTableModel(self)
        model.setTable('orders')
        model.setRelation(2, QSqlRelation('customers', 'CustomerID', 'Customer'))
        model.setRelation(3, QSqlRelation('products', 'ProductID', 'Product'))
        model.setRelation(1, QSqlRelation('products', 'ProductID', 'Price'))
        model.select()

        # Create the presentation model, which gets data from relational table model
        presentation_model = MyTableModel(model)

        # Setup the view
        view = QTableView(self)
        view.setModel(presentation_model)
        view.resizeColumnsToContents()
        self.setCentralWidget(view)

The presentation model

But what is this mysterious MyTableModel class? Where it comes from? It’s our new QAbstractTableModel subclass. Let’s create it.

class MyTableModel(QAbstractTableModel):
    def __init__(self, model):
        super().__init__(model)

        self._model = model

    # Create the data method
    def data(self, index, role):

        if role == Qt.ItemDataRole.DisplayRole:
            value = self._model.record(index.row()).value(index.column())
            if isinstance(value, int) and index.column() == 1:
                # Format the currency value
                return "${: ,.2f}".format(value)
            return value

    # Create the headerData method
    def headerData(self, section: int, orientation: Qt.Orientation, role: int):
        if role == Qt.ItemDataRole.DisplayRole and orientation == Qt.Orientation.Horizontal:
            return self._model.headerData(section, orientation, role=role)

    # Create the rowCount method
    def rowCount(self, parent: QModelIndex) -> int:
        return self._model.rowCount()

    # Create the columnCount method
    def columnCount(self, parent: QModelIndex) -> int:
        return self._model.columnCount()

Let’s comment on some important details:

We must not forget to import a few modules: from PyQt6.QtCore import QAbstractTableModel, QModelIndex, Qt
The __init__ constructor accepts only a single parameter model. We store it in self._model to access it in our methods.

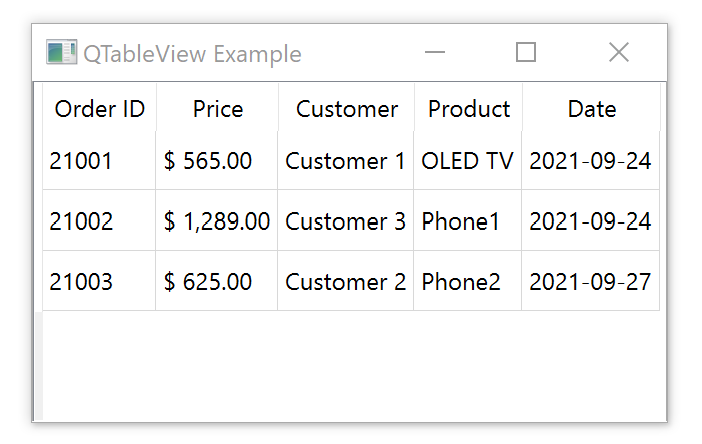

The data method first looks for the display role. When it’s found, we get the value and check the column where formatting is required. Finally, the method returns a formatted value for the presentation.
The headerData method looks for the role and orientation. When orientation is horizontal, it returns the headers available. As we don’t have row headers defined, the row header becomes hidden.
Although we have created the rowCount and columnCount methods, they do nothing at the moment. However, we’ll use them later.
