Knowledge Graph Transformers: Architecting Dynamic Reasoning for Evolving Knowledge

Artificial intelligence software was used to enhance the grammar, flow, and readability of this article's text.

Artificial intelligence software was used to enhance the grammar, flow, and readability of this article’s text.

Knowledge graphs, which represent facts as interconnected entities, have emerged as a pivotal technique for enhancing AI systems with the capacity to assimilate and contextualize knowledge.

However, real-world knowledge continuously evolves, necessitating dynamic representations that can capture the fluid, time-sensitive intricacies of the world.

Temporal knowledge graphs (TKGs) fulfill this need by incorporating a temporal dimension, with each relationship tagged with a timestamp denoting its period of validity. TKGs allow modeling not only the connections between entities but also the dynamics of these relationships, unlocking new potentials for AI.

While TKGs have garnered substantial research attention, their application in specialized domains remains an open frontier. In particular, the financial sector possesses attributes like rapidly evolving markets and multifaceted textual Data that could significantly benefit from dynamic knowledge graphs. However, underdeveloped access to high-quality financial knowledge graphs has constrained advances in this domain.

Addressing this gap, Xiaohui Victor Li(2023) introduces an innovative, open-source Financial Dynamic Knowledge Graph (FinDKG) powered by a novel temporal knowledge graph learning model named Knowledge Graph Transformer (KGTransformer).

FinDKG/FinDKG_dataset at main · xiaohui-victor-li/FinDKG

Financial Dynamic Knowledge Graph

The FinDKG, constructed from a corpus of global financial news spanning over two decades, encapsulates both quantitative indicators and qualitative drivers of financial systems into an interconnected, temporal framework. The authors demonstrate FinDKG’s utility in generating actionable insights for real-world applications like risk monitoring and thematic investing.

The KGTransformer model, designed to handle the intricacies of TKGs, is shown to outperform existing static knowledge graph models on benchmark TKG datasets.

The architecture leverages recent advances like meta-relation modeling, graph attention networks, and temporal point processes to achieve strong results.

Through access to open-sourced resources like FinDKG, KGTransformer, and the fine-tuned Integrated Contextual Knowledge Graph Generator (ICKG) model, this work aims to catalyze interdisciplinary research at the intersection of knowledge graphs and finance.

By harnessing dynamic knowledge graphs to generate nuanced financial insights, this research highlights impactful directions for injecting structured knowledge into data-driven finance and economics.

The capabilities showcased through FinDKG underscore the power of knowledge graphs in capturing the fluid complexities of the real world.

Transformer (KGT) model have expansive potential across industries. In supply chain management, KGTs can track supplier performance, forecast demand, and identify risks over time.

With knowledge representation and reasoning serving as active frontiers in artificial intelligence, this study signifies an important step towards building intelligent systems proficient in dynamic understanding.

Limitations of Static Graph Networks

Most existing graph neural networks are designed for static graphs and do not account for temporal dynamics. For instance, models like Graph Convolutional Networks (GCNs) and Graph Attention Networks (GATs) aggregate information from neighboring nodes disregarding any temporal patterns.

This static assumption severely restricts their reasoning capacity on TKGs. Without considering temporal context, predictions made using static embeddings quickly become outdated as the graph evolves.

Furthermore, static models treat all edges uniformly, lacking the nuance to model relationships that vary in importance or validity over time. Their representation also remains confined to immediate neighbors, lacking a broader temporal perspective.

TKGs require models that can understand time-dependent edge importance, adapt their decision-making as relationships and entities evolve, and make predictions while considering both past and future implications.

Let’s see how KGTs achieve this.

Introducing Knowledge Graph Transformers

KGTs present a new paradigm of architectures specialized for dynamic learning on TKGs. They bring together graph neural networks and transformers in an innovative fashion.

At their core, KGTs incorporate inductive biases that make their design uniquely suited for TKG-based reasoning. These include:

  • Explicit temporal modeling to capture evolutionary dynamics
  • Multi-relational handling to represent heterogeneous relationships
  • Continuous entity tracking to allow temporal adaptability
  • Graph-level summarization to enable broader context

Let’s break down how KGTs implement these capabilities:

Explicit Temporal Modeling

KGTs use separate entity and relation RNNs (Recurrent Neural Networks) to model the temporal evolution of node embeddings.

As new events get added to the TKG, the RNNs update the embeddings to reflect the new state. This allows maintaining a representation of how an entity or relationship changes over time.

The RNNs also enable ordered sequence modeling, where the embedding at time t depends on prior timesteps – mimicking real-world temporal dynamics.

Multi-Relational Handling

In line with recent multi-relational graph network advances, KGTs employ relation-specific parameters to handle varied semantic connections.

For example, the "Employed_By" and "Friends_With" relations have very different implications, which the model captures using distinct weights for each relation type.

This nuanced handling prevents over-generalization and improves predictive quality.

Continuous Entity Tracking

Instead of processing the TKG in isolated snapshots, KGTs continuously update embeddings as new events get added to the graph.

This allows smoothly tracking entities over time rather than re- initializing at each timestep. The resulting continuity preserves temporal contexts and enables the model to adapt as the TKG evolves.

Graph-Level Summarization

In addition to neighboring node states, KGTs also incorporate a global graph embedding summarizing the entire state of the TKG up to a certain time.

This provides crucial temporal context and improves predictions by considering the broader impacts of new events spanning beyond immediately affected entities.

The graph embedding is calculated using a temporal attention mechanism over all nodes, enabling adaptive and efficient summarization.

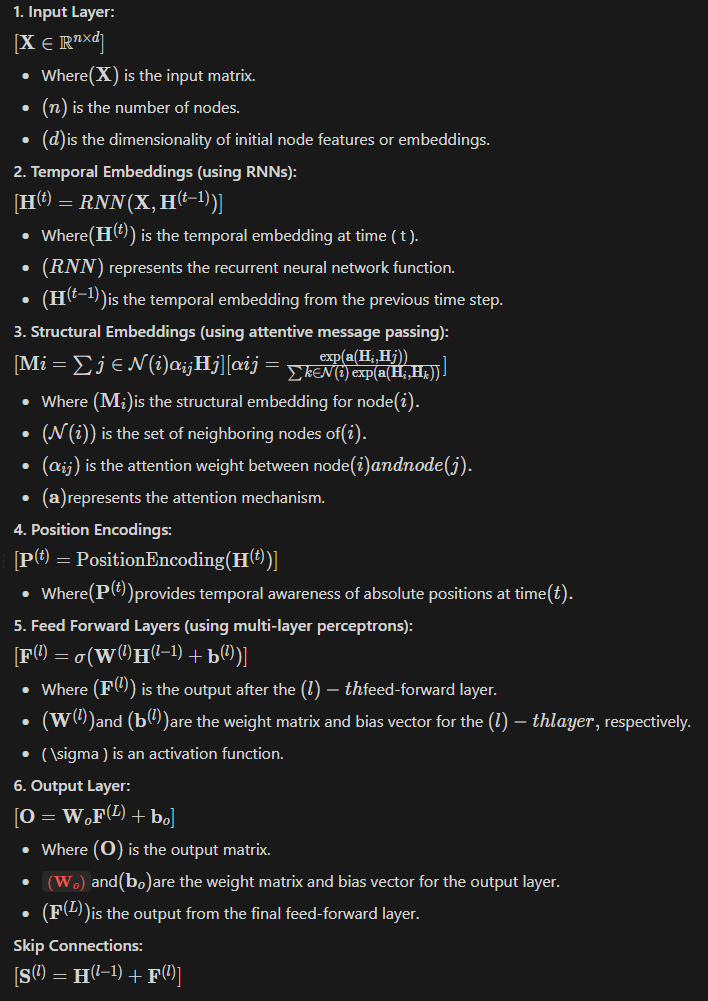

Architectural Components

KGTs comprise several interconnected components that impart the aforementioned capabilities:

  • Input Layer: Accepts initial node features or embeddings.
  • Temporal Embeddings: Serve as specialized embeddings encoding time-evolving properties using RNNs.
  • Structural Embeddings: Capture node neighborhoods and global topology through attentive message passing between neighbors.
  • Position Encodings: Provide temporal awareness of absolute positions analogous to transformer architectures.
  • Feed Forward Layers: Enable deeper semantic integration using multi-layer perceptrons.
  • Output Layer: Returns node embeddings or predictions tailored to the end task.

The components are stacked in a layered architecture, with each block refining and enriching the embeddings further. Skip connections allow combining both local and global perspectives.tional details, such as normalization layers, dropout, and specific activation functions, would be incorporated into the equations.

Advantages over Existing Methods

The unique architectural attributes of KGTs lend them multiple advantages over previous state-of-the-art models on temporal graphs:

  • Generalization: KGTs can handle previously unseen entities, relations, and events by leveraging the learned inductive biases. Comparatively, many existing models rely on re-training.
  • Reasoning: The temporally-enriched entity and graph representations learned by KGTs lead to improved predictive reasoning on temporal graphs outperforming previous models.
  • Efficiency: Mechanisms like the graph embedding avoid having to process lengthy historical sequences, improving training and inference efficiency on large TKGs.
  • Interpretability: Components like relation-specific parameters and temporal attention provide insight into the model’s working, improving interpretability over black-box models.

Overall, KGTs advance the state-of-the-art in dynamic reasoning on temporal knowledge graphs. Their strong empirical performance coupled with architectural transparency highlights their potential as a robust and practical solution for modeling complex time-evolving domains.

A sea of applications :

The introduction of KGTs stimulates intriguing opportunities at the intersection of knowledge representation, reasoning, and time-series modeling – opening new frontiers in dynamic graph learning. As TKGs find expanding real-world applications, KGTs signify an impactful step towards endowing AI agents with a temporal understanding of the world around them.

This research makes significant strides in advancing the modeling of evolving real-world systems using dynamic knowledge graphs and specialized learning techniques. Through the introduction of an open-source Financial Knowledge Graph (FinDKG) and an innovative Knowledge Graph Transformer (KGTransformer) model, this work provides both practical tools and methodological advances to the field.

The creation of FinDKG from a corpus of global financial news demonstrates the feasibility of constructing domain-specific dynamic knowledge graphs.

FinDKG encapsulates both qualitative and quantitative aspects of financial systems in an interconnected, temporal framework. The use cases presented, from risk monitoring to thematic investing, highlight FinDKG’s utility in generating nuanced insights. This application potential is further expanded through the availability of FinDKG as an open-source resource.

On the methodology front, KGTransformer pushes forward the state-of-the-art in dynamic knowledge graph learning. By combining architectural elements like graph attention networks, meta-relation modeling, and temporal point processes, KGTransformer achieves strong performance on benchmark dynamic graph datasets. The model is shown to outperform existing static knowledge graph models that do not account for temporal contexts. The introduction of components like relation-specific parameters and continuous entity tracking provide more expressive representations to handle evolving graphs.

The innovations presented in this research catalyze myriad possibilities at the intersection of knowledge representation, reasoning, and time-series modeling.

The availability of open-sourced resources like FinDKG, KGTransformer, and the ICKG language model provides fertile ground for other researchers to build upon this work and expand such techniques to new domains.

Some promising directions include:

  • Constructing dynamic knowledge graphs for specialized verticals like healthcare, education, transportation etc. that can benefit from temporal reasoning.
  • Enhancing KGTransformer’s capabilities using recent advances in self-supervised learning and contrastive methods for graph representation learning.
  • Combining the strengths of large language models with structured knowledge graphs for an integrated reasoning framework.
  • Empirical comparisons of graph learning techniques with traditional time-series models on temporal forecasting tasks.
  • Architectural improvements to KGTransformer like incorporating transformer encoders or improving temporal memory.

By harnessing the dual powers of transformer networks and structured knowledge graphs, this research enables richer dynamic understanding critical for intelligent systems operating in the real world.

As knowledge representation and reasoning over time remain open frontiers, the groundwork established here serves as a springboard for impactful innovation at the confluence of machine learning and symbolic AI.

Image by the author
Image by the author
