These days, companies require engineering skills for the development and deployment of Machine Learning models into production.
A Machine Learning Engineer should now possess the capability to handle the entire model life cycle, covering aspects like experiment tracking, orchestrator, CI/CD, version control, and model registry – from data extraction to productionization.
In this article, we’ll dive into a machine-learning assignment I conducted for a leader in the short-term rental industry, using two widely used tools in the industry: Airflow and Mlflow.
This article not only guides readers through the resolution of a real-case Machine Learning project but also provides public access to the entire repository for later use in machine learning projects.
GitHub – jeremyarancio/reservation_cancellation_prediction: Predict if a reservation will be…

Overview
- The Project
- Exploratory Data Analysis
- Configurations
- Steps
- Build DAGs with Airflow
- Conclusions
The Project
The company is a leader in the short-term homestay management industry. To find the next Senior Machine Learning engineer, they provided an assignment to evaluate the candidate’s ability to build robust machine learning infrastructures.
A publicly available dataset was provided, containing hotel reservations separated into two categories: bookings that effectively arrived; and those that were canceled.
The objective of the assignment was the following:
Based on reservation characteristics, predict if it is likely to be canceled.

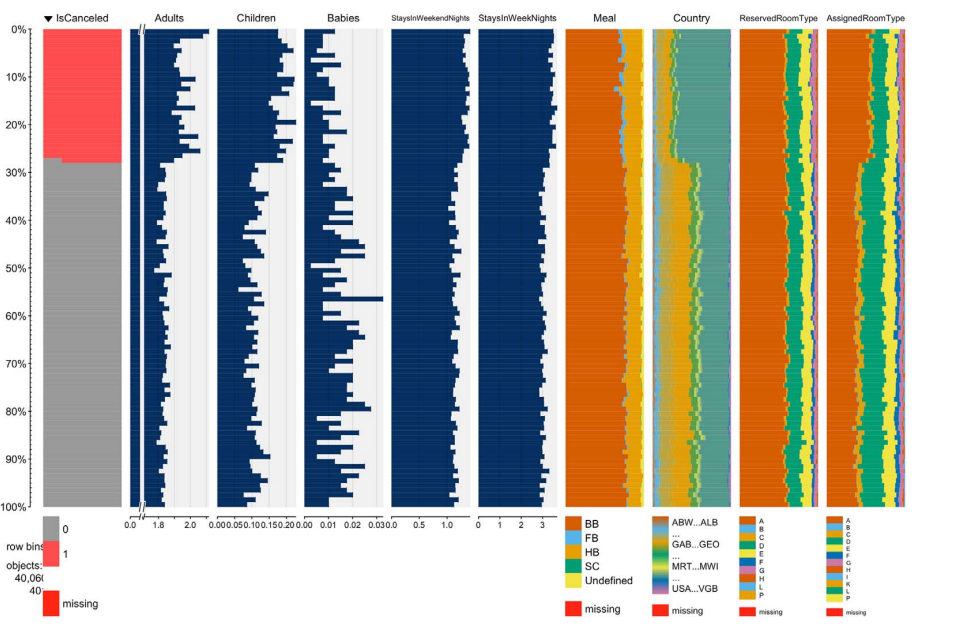

![Dataset partial visualization of all observations. From paper [1]](https://towardsdatascience.com/wp-content/uploads/2024/01/19DuU8yl0sXAUXH__-U32BA.png)
Now the assignment is clear, it’s time to perform exploratory data analysis.
Exploratory Data Analysis
To perform the EDA, we’ll use Jupyter Notebook with Pandas.
No data transformation will be performed in a notebook, the reason being the same preprocessing and feature engineering steps will be reproduced during the training phase, but also inferences.
Even if we haven’t even started the project, we already think about the production architecture and how the model will be used once deployed. Remember that a model has no value if it remains in a notebook.
The dataset is composed of nearly 120,000 reservations for 2 different hotels: a resort hotel (79,330) and a city hotel (40,060). Our exploration showed that the dataset was already quite clean, but some elements are worth being pointed out.
Missing values
We start by replacing missing values for each feature.
count_na = df.isna().sum(axis=0)
count_na[count_na != 0]
#children 4
#country 488
#agent 16340
#company 112593
Agent and Company features indicate whether the reservation was made through a travel agency or a company, and they are represented by unique IDs. Given that there is no ID assigned as 0, it is safe to replace any NaN values in these features with 0.
Concerning the children feature, regarding the low number of missing values, we’ll simply consider them equal to 0.
Finally, missing countries will be replaced by the categorical value Unknown.
Data leakage
After exploring the features, we noticed that some were strongly associated with the target _iscanceled, leading to a risk of data leakage.
Data leakage happens when the training dataset contains information about the target that is no longer present during predictions once the model is deployed. The following article explains well the concept of data leakage.
In our example, two features, namely _deposittype and _reservationstatus, give information about the target but are less likely to be present in production.

While it is obvious the _reservationstatus is linked with the target feature, it also seems the deposit wasn’t refunded in case of cancelation. To confirm, we calculate the proportion of canceled reservations when the deposit wasn’t refunded, and it exceeds 99%, pointing towards a clear causal relationship.
Those features will have to be removed during the feature engineering step.
Categorical values
Half of the features are categorical, meaning they need to be transformed into numerical values to be considered by the model. A simple way to encode those features is to use the Ordinal Encoder from Sklearn.
It converts each unique category into a unique ID. However, what happens during an inference if the encoder prepared during training encounters a category it has never encountered before?
Lucky for us, Sklearn came with an option to handle unknown values, replacing them with a default one.
from sklearn.preprocessing import rdinalEncoder
ordinal_encoder = OrdinalEncoder(
handle_unknown="use_encoded_value",
unknown_value=-1
)
Yet, certain categorical values exhibit high cardinality, involving numerous unique categories, which can result in what is commonly referred as the _Curse of Dimensionality_.
To solve this issue, we use the Target Encoder from Sklearn, which encodes categories based on their influence on the target.

Important note: these encoders will be prepared using the training dataset, exported as artifacts, and subsequently employed during model evaluations and inferences. Therefore, it is imperative that the feature engineering step takes place after the data is split into train and test sets.
We have briefly talked about the EDA. You’ll find more analysis in the exploratory notebook located at notebooks/0_exploratory_data_analysis
in the GitHub repository.

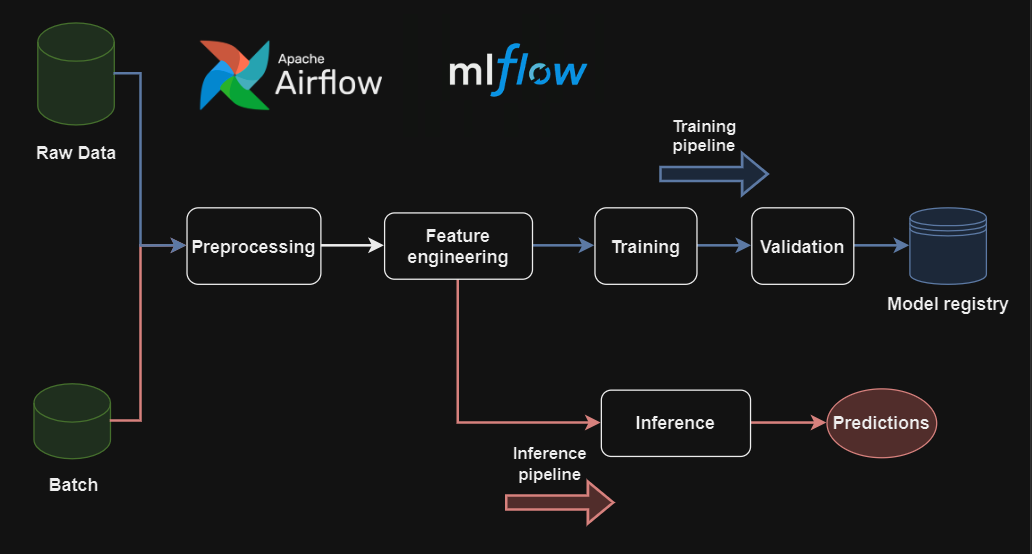

Now let’s dig into building machine-learning pipelines that will:
- Preprocess the data,
- Perform feature engineering,
- Train and evaluate the model,
- Register a new model version if it performs better than the deployed one,
- Perform inferences using the trained model and encoders.

We’ll use Airflow coupled with Mlflow to build those pipelines, two tools widely used in the industry today in Machine Learning.
Configurations
In this section, we’ll walk through the configuration of Airflow and Mlflow for this project. To keep it simple, we’ll set up these tools locally.
You can skip this section if you’re not interested in reproducing this work.
Mlflow
Mlflow is an experiments tracking and model registry tool widely used in the industry to develop and deploy Machine Learning models in production.
Quickstart: Install MLflow, instrument code & view results in minutes
To run it locally, you first need to install Mlflow in your environment using the command pip install mlflow
.
We then start a new tracking server locally by configuring the path where experiments and registered models will be stored. To do so, you can type the following command in the shell.
mlflow server --backend-store-uri mlflow/ --artifacts-destination mlflow/ --port 8000

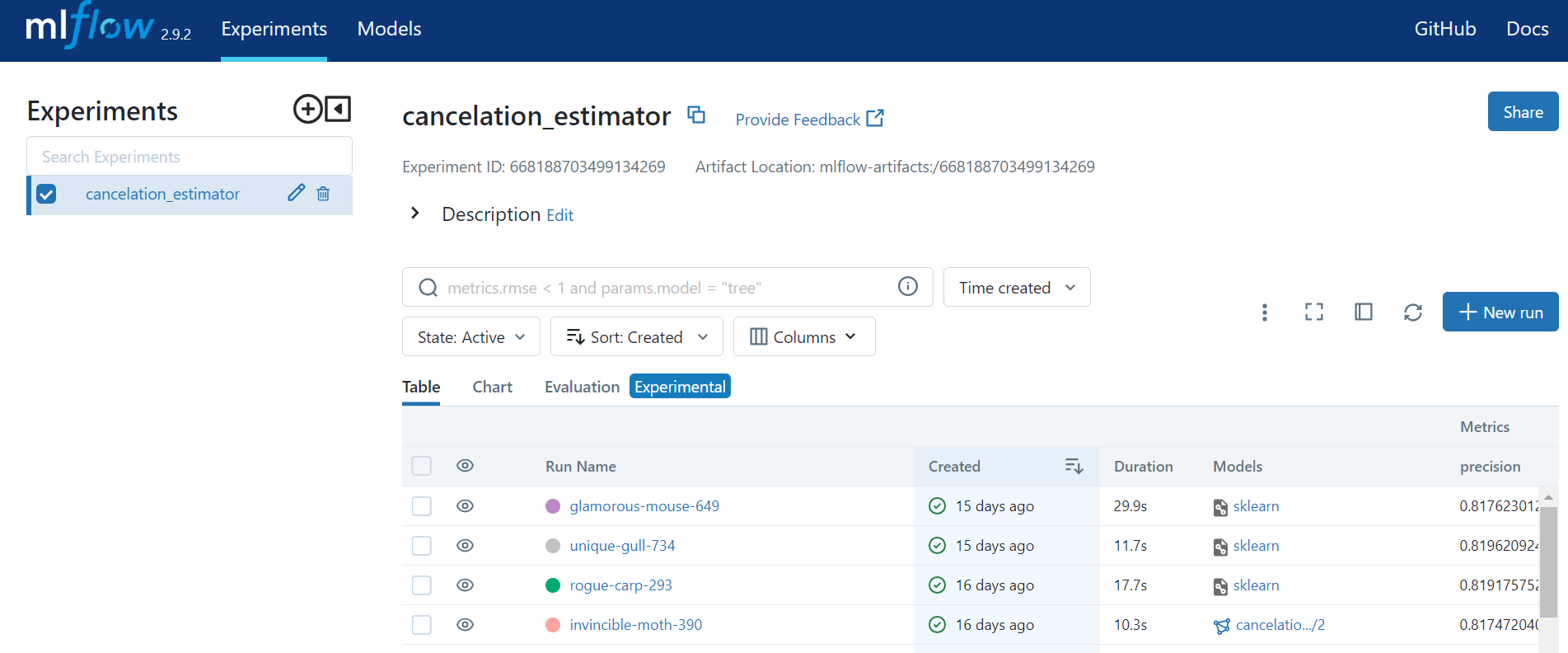

This will start the Mlflow UI under the port 8000
, giving you a visual of your ML experimentations.

Mlflow is now set up.
Airflow
Airflow is an industry-first-choice orchestrator. It was initially developed to build data engineering pipelines but with the expansion of Machine Learning in business, it started to be used to manage ML workflows as well.
We’ll install the standalone version that will run in your repository.
To install the library, you first need to indicate the airflow path containing the database and the dags, referring to the pipelines as Directed Acyclic Graph.
# Add the airflow directory into your .bashrc file
export AIRFLOW_HOME=<path/to/airflow/directory/>
We then install Airflow following the instructions from the official documentation. Airflow uses constraint files to enable reproducible installation, using pip
.
AIRFLOW_VERSION=2.8.0
# Extract the version of Python you have installed. If you're currently using a Python version that is not supported by Airflow, you may want to set this manually.
# See above for supported versions.
PYTHON_VERSION="$(python --version | cut -d " " -f 2 | cut -d "." -f 1-2)"
CONSTRAINT_URL="https://raw.githubusercontent.com/apache/airflow/constraints-${AIRFLOW_VERSION}/constraints-${PYTHON_VERSION}.txt"
# For example this would install 2.8.0 with python 3.8: https://raw.githubusercontent.com/apache/airflow/constraints-2.8.0/constraints-3.8.txt
pip install "apache-airflow==${AIRFLOW_VERSION}" --constraint "${CONSTRAINT_URL}"
You can then open a new terminal and run the airflow UI as a standalone application.
airflow standalone
On the first installation, this will create the airflow
directory with config files and a local database.

The first airflow UI launch usually comes with a bunch of examples. We don’t want them. In the airflow.cfg
file, set load_examples
to False
.
Also, be sure to indicate the path to the dags folder:
dags_folder = /path/to/project/airflow/dags
You’re now set up with Mlflow and Airflow. Let’s build some pipelines now!
Steps
We’ll build the pipeline module by module, which we call step. Preprocessing, training, inference, and so on. The primary advantage lies in the modularity it offers: independence, portability, and testability.
Each step is a Python class containing two main methods: __init__
and __call__
. Here’s an example:
class PreprocessStep:
"""Preprocessing based on Exploratory Data Analysis done in `notebooks/0_exploratory_data_analysis.ipynb`
Args:
data_path (str): data.parquet file to preprocess. If `training_mode==False`, switch the preprocessing to inference mode.
preprocessed_data_path (Optional[Path], optional): Output path of the preprocessed data. Defaults to None.
training_mode (Optional[bool], optional): Switch to training or inference mode. Defaults to True.
"""
def __init__(
self,
inference_mode: bool,
preprocessing_data: PreprocessingData
) -> None:
self.inference_mode = inference_mode
self.preprocessing_data = preprocessing_data
def __call__(self, data_path: Path) -> None:
...
The __init__
method accepts as input all necessary data paths, including output paths, to execute the step. Additionally, specific options like _trainingmode can be incorporated, indicating whether this step is intended for the training or inference phase.
The __call__
executes the step and accepts as inputs the incoming data paths and additional data coming from the previous step, like ids.
Since the size of the data that flows between steps is limited depending on the database (64kB for mySQL for example!), each step accepts and returns string values, such as data path or ids, but not data!

Data preprocessing
During the data preprocessing step, the data is cleaned and missing values are replaced following our initial exploratory data analysis. The data is then split into a train and a test set.
But why split the data now and not during the training phase only?
As we described previously in this article, some features are categorical values. To transform these features into numerical values, we’ll use encoders: Ordinal and Target encoders from Sklearn. These encoders will be fit()
to the data during the feature engineering step.
However, if these encoders are fitted on the entire dataset, it will insert bias during the evaluation stage. Therefore, we split the data during the preprocessing before the feature engineering step could see the data.
from pathlib import Path
import pandas as pd
from steps.utils.data_classes import PreprocessingData
class PreprocessStep:
"""
Preprocessing based on Exploratory Data Analysis done in `notebooks/0_exploratory_data_analysis.ipynb`
Args:
inference_mode (bool): Training or inference mode.
preprocessing_data (PreprocessingData): PreprocessingStep output paths.
"""
def __init__(
self,
inference_mode: bool,
preprocessing_data: PreprocessingData
) -> None:
self.inference_mode = inference_mode
self.preprocessing_data = preprocessing_data
def __call__(self, data_path: Path) -> None:
"""
Data is preprocessed then, regarding if inference=True or False:
* False: Split data into train and test.
* True: Data preprocessed then returned simply
Args:
data_path (Path): Input
"""
preprocessed_df = pd.read_parquet(data_path)
preprocessed_df = self._preprocess(preprocessed_df)
if not self.inference_mode:
train_df = preprocessed_df.sample(
frac=TrainerConfig.train_size, random_state=TrainerConfig.random_state
)
test_df = preprocessed_df.drop(train_df.index)
train_df.to_parquet(self.preprocessing_data.train_path, index=False)
test_df.to_parquet(self.preprocessing_data.test_path, index=False)
if self.inference_mode:
preprocessed_df.to_parquet(self.preprocessing_data.batch_path, index=False)
@staticmethod
def _preprocess(df: pd.DataFrame) -> pd.DataFrame:
"""Preprocessing."""
df["children"].fillna(0, inplace=True)
df["country"].fillna("Unknown", inplace=True)
df["agent"].fillna(0, inplace=True)
df["company"].fillna(0, inplace=True)
return df
As you might have noticed, the PreprocessStep class accepts a PreprocessingData
object as input, which is a dataclass we designed to encapsulate all the requirements for this step.
from dataclasses import dataclass
from pathlib import Path
from typing import Optional
@dataclass
class PreprocessingData:
"""Data paths generated by PreprocessingStep.
Regarding if it's the training or inference pipeline, the correct paths need to be implemented
(respectively train_path, test_path / batch_path)
"""
train_path: Optional[Path] = None
test_path: Optional[Path] = None
batch_path: Optional[Path] = None
Once the data is cleaned and split, the feature engineering step takes place.
Feature engineering
We describe feature engineering as the stage where features (columns in this case) are modified, fused, or deleted for the model training or inference.
The feature engineering step is divided into two parts.
We first remove the features having a causality relationship with the target.
We then transform the categorical values into numerical values using the Ordinal and Target Encoders from Sklearn.
However, this step poses several challenges since it carries three distinct processes:
- The training phase in which encoders are tuned on the training data, then saved as artifacts.
- The evaluation phase in which encoders are loaded and then applied to the test dataset.
- The inference phase mirrors the evaluation phase, with the only distinction being the absence of a target.
To save and load the tuned encoders, we create a dataclasse object containing both encoders, their respective features, and the target features required by the Target encoder.
from dataclasses import dataclass
from pathlib import Path
from typing import Iterable
import joblib
from sklearn.preprocessing import OrdinalEncoder, TargetEncoder
@dataclass
class FeaturesEncoder:
"""Encoders artifact dumped and loaded during the feature_engineering step."""
ordinal_encoder: OrdinalEncoder
target_encoder: TargetEncoder
base_features: Iterable[str]
ordinal_features: Iterable[str]
target_features: Iterable[str]
target: str
def to_joblib(self, path: Path) -> None:
"""Dump artifact as a joblib file.
Args:
path (Path): Encoders path
"""
joblib.dump(self, path)
The FeatureEngineeringStep
class is built as follows.
The class contains additional methods we’ll not explain in detail in this article: fit_transform()
or fit()
, but feel free to check the script in the Github repository.
from pathlib import Path
from typing import Optional
import pandas as pd
from steps.utils.data_classes import FeaturesEngineeringData
class FeatureEngineeringStep:
"""Feature engineering: transform features for model training and inference."""
def __init__(
self,
inference_mode: bool,
feature_engineering_data: FeaturesEngineeringData
) -> None:
"""
Args:
inference_mode (bool): Whether the step is used in the training or inference pipeline.
feature_engineering_data (FeaturesEngineeringEData): Paths relative to the FeatureEngineeringStep
"""
self.inference_mode = inference_mode
self.feature_engineering_data = feature_engineering_data
def __call__(
self,
train_path: Optional[Path] = None,
test_path: Optional[Path] = None,
batch_path: Optional[Path] = None,
) -> None:
"""
Input data paths depending on whether it's training (train, test) or inference (batch)
Args:
train_path (Optional[Path], optional): Input train path. Defaults to None.
test_path (Optional[Path], optional): Input test path. Defaults to None.
batch_path (Optional[Path], optional): input batch path. Defaults to None.
"""
if not self.inference_mode:
train_df = pd.read_parquet(train_path)
test_df = pd.read_parquet(test_path)
self.fit_transform(
df=train_df,
output_path=self.feature_engineering_data.train_path
)
self.transform(
df=test_df,
output_path=self.feature_engineering_data.test_path
)
if self.inference_mode:
batch_df = pd.read_parquet(batch_path)
self.transform(
batch_df,
output_path=self.feature_engineering_data.batch_path
)
def fit_transform(
self,
df: pd.DataFrame,
output_path: Path
) -> None:
"""Fit encoders on data and store the encoder into the features store
The processed data is then stored.
Args:
df (pd.DataFrame): Data to train encoders and to transform.
output_path (Path): Data path after encoding.
"""
LOGGER.info("Start features engineering 'fit_transform'.")
...
def transform(
self,
df: pd.DataFrame,
output_path: Path
) -> None:
"""Transform data based on trained encoders.
Args:
df (pd.DataFrame): Data to transform.
output_path (Path): Transformed data path.
"""
LOGGER.info("Start features engineering 'transform'.")
...
Once the dataset is prepared, we can then go to the training stage (or inference in case of inference pipeline).
Training
For the training stage, we train the cancelation predictor with the Gradient Boosting Classifier algorithm from the Sklearn library. It’s usually a good choice when working with tabular data.
A requirement for this project is the parametrization of the pipeline: for example, any model parameterization should be done without modifying the training script. Therefore, we add params
as a variable of the __init__
method, containing the parameters required by the model.
from steps.config import TrainerConfig
class TrainStep:
"""Training step tracking experiments with MLFlow.
In this case, GradientBoostingClassifier has been picked, and the chosen metrics are:
* precision
* recall
* roc_auc
Args:
params (Dict[str, Any]): Parameters of the model. Have to match the model arguments.
model_name (str, optional): Additional information for experiments tracking. Defaults to TrainerConfig.model_name."""
def __init__(
self,
params: Dict[str, Any],
model_name: str = TrainerConfig.model_name
) -> None:
self.params = params
self.model_name = model_name
All parameters of the entire project are stored in a single config
file to avoid floating variables in the code.
class TrainerConfig:
model_name ="gradient-boosting"
random_state = 42
train_size = 0.2
shuffle = True
params = {
"n_estimators": 100,
"min_samples_split": 2,
"min_samples_leaf": 1
}
Since the TrainStep
is invoked in the pipeline script, updating the pipeline to run a new model parametrization becomes a straightforward process, simplifying experimentation.
Regarding the metrics, we choose Precision, Recall, and ROC-AUC to evaluate our model performances, which is common in classification tasks.
To log these metrics and the model once trained, we use Mlflow.
Before starting to log, we need to indicate the Mlflow server we created on the port 8000
. We also need to indicate the name of the project, also called Experiment.
If not already existing, you need to create a new experiment. In this case, it is named "cancelation_estimator"
import mlflow
mlflow.set_tracking_uri("http://0.0.0.0:8000")
mlflow.set_experiment("cancelation_estimator")
After training the model, the run will be saved, and a unique ID will be assigned to it. This run serves as the reference for retrieving metrics and artifacts generated during the process.
Consequently, if we intend to use any components of this run, such as registering the model or obtaining the best run, we need to return the run_id
within the pipeline, using Xcoms.
In Airflow, Xcoms (short for "cross-communications") are a mechanism that let Steps talk to each other, as by default, Steps are entirely isolated and may be running on entirely different machines.
Let’s talk now about the artifact.
An artifact, whether compressed or not, is a folder encompassing the model (or any objects like data or encoders) and all the necessities for its execution. This includes scripts, the requirements.txt
file, and more… Mlflow provides different artifact templates to run the trained model.
Since we used Sklearn, let’s use the sklearn
artifact from Mlflow to log the model.
mlflow.sklearn.log_model(
sk_model=model, # Gradient Boosting model
artifact_path="model-artifact", # Artifact path: runs:/<mlflow_run_id>/model-artifact
)
Similarly, in certain scenarios, customization of the artifact may be necessary. It can be easily done using mlflow.pyfunc.PythonModel
. Check an example of a custom artifact in the repository located at steps/utils/_artifact.py
or check the official documentation.

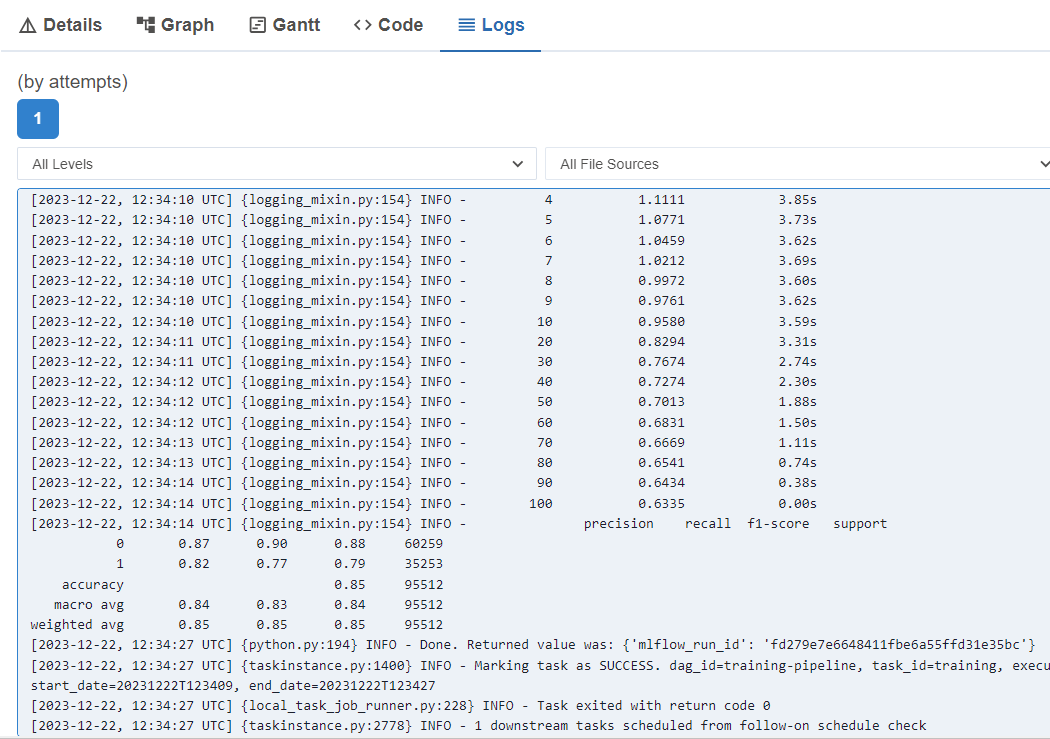

Here’s the complete script to train and evaluate the model, log metrics, and log the model into an artifact. The run_id
is returned to be passed as an Xcom value to the next step.
# TrainStep class
def __call__(
self,
train_path: Path,
test_path: Path,
target: str
) -> None:
mlflow.set_tracking_uri(MlFlowConfig.uri)
mlflow.set_experiment(MlFlowConfig.experiment_name)
with mlflow.start_run():
train_df = pd.read_parquet(train_path)
test_df = pd.read_parquet(test_path)
# Train
gbc = GradientBoostingClassifier(
random_state=TrainerConfig.random_state,
verbose=True,
**self.params
)
model = gbc.fit(
train_df.drop(target, axis=1),
train_df[target]
)
# Evaluate
y_test = test_df[target]
y_pred = model.predict(test_df.drop(target, axis=1))
# Metrics
precision = precision_score(y_test, y_pred)
recall = recall_score(y_test, y_pred)
roc_auc = roc_auc_score(y_test, y_pred)
print(classification_report(y_test, y_pred))
metrics = {
"precision": precision,
"recall": recall,
"roc_auc": roc_auc
}
# Mlflow
mlflow.log_params(self.params)
mlflow.log_metrics(metrics)
mlflow.set_tag(key="model", value=self.model_name)
mlflow.sklearn.log_model(
sk_model=model,
artifact_path=MlFlowConfig.artifact_path,
)
return {"mlflow_run_id": mlflow.active_run().info.run_id} # The output of this step, considered as xcom by Airflow

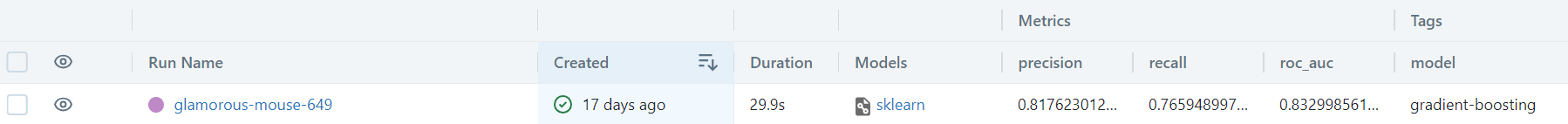

If we now look at the Mlflow UI, we can spot our run last run containing the logged metrics and artifact.

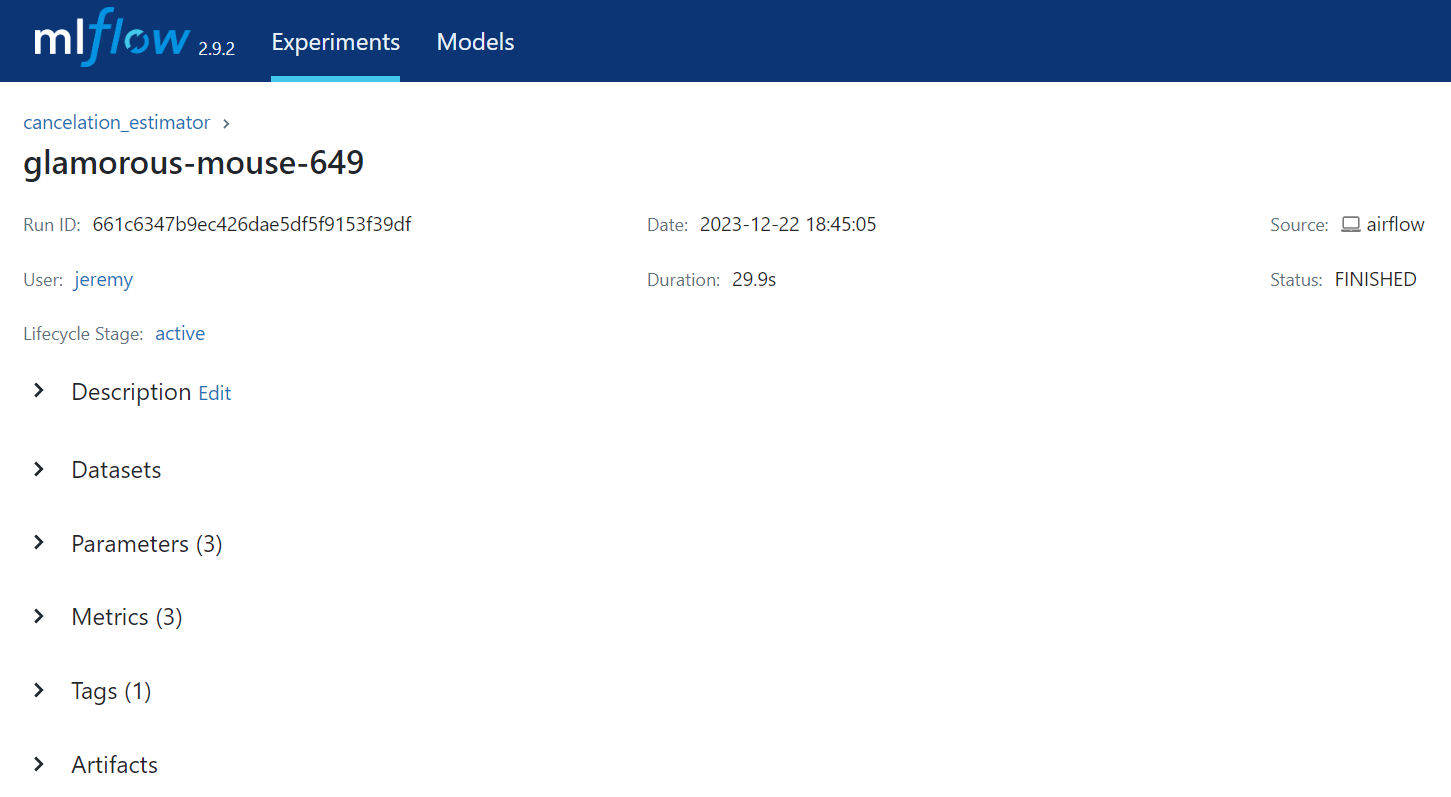

If we click on the run, we access the run card with further details. This run card is fully customizable adding scalability and customizability to your project.

On the upper left, we notice the run_id
, the unique run identifier. We will use this ID to retrieve the model and all the metrics from this run to register and load the model artifact during inference.
Register the model
During Machine Learning, runs are compared then the best one is selected to be saved in the model registry. The model registry is the last step before deploying a model in production. It tracks model versions, enabling continuous development in projects.
In this project, we will automatically register a new model if its performances exceed the one already in the model registry. If no model has been registered, we take care of creating a new model.
To decide if a model should be registered, we will compare a specific metric, such as roc-auc. We add customization to the pipeline by adding options to the __init__
method, which will be called in the dag script.
We also add criteria
, a coefficient to consider if the new metric is significantly better than the one already registered. It simply follows this equation: if metric > registered_metric * (1 + criteria)
.
from typing import Literal
class ConditionStep:
"""Condition to register the model.
Args:
criteria (float): Coefficient applied to the metric of the model registered in the model registry.
metric (str): Metric as a reference. Can be `["precision", "recall", or "roc_auc"]`. Default to `"roc_auc"`.
"""
def __init__(
self,
criteria: float,
metric: Literal["roc_auc", "precision", "recall"]
) -> None:
self.criteria = criteria
self.metric = metric
For this step, we need two things: the active_run_id
provided after the training step, and thelast_registered_model_version_run_id
to get all the information on the existing model in the model registry.
Here’s the __call__
method of the ConditionStep
class:
import mlflow
from steps.config import MlFlowConfig
def __call__(self, mlflow_run_id: str) -> None:
"""
Compare the metric from the last run to the model in the registry.
if `metric_run > registered_metric*(1 + self.criteria)`, then the model is registered.
Args:
mlflow_run_id (str): active run id
"""
LOGGER.info(f"Run_id: {mlflow_run_id}")
mlflow.set_tracking_uri(MlFlowConfig.uri)
run = mlflow.get_run(run_id=mlflow_run_id)
metric = run.data.metrics[self.metric]
registered_models = mlflow.search_registered_models(
filter_string=f"name = '{MlFlowConfig.registered_model_name}'"
)
if not registered_models:
mlflow.register_model(
model_uri=f"runs:/{mlflow_run_id}/{MlFlowConfig.artifact_path}",
name=MlFlowConfig.registered_model_name,
)
LOGGER.info("New model registered.")
latest_registered_model = registered_models[0]
registered_model_run = mlflow.get_run(
latest_registered_model.latest_versions[0].run_id
)
registered_metric = registered_model_run.data.metrics[self.metric]
if metric > registered_metric * (1 + self.criteria):
mlflow.register_model(
model_uri=f"runs:/{mlflow_run_id}/{MlFlowConfig.artifact_path}",
name=MlFlowConfig.registered_model_name,
)
LOGGER.info("Model registered as a new version.")

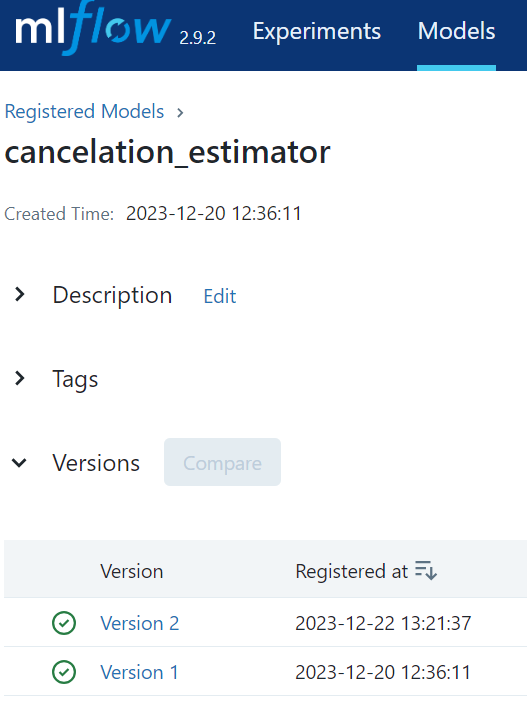

Once this step is done, if the model is validated, it is registered into the Mlflow models registry.

Inference
Finally, the last module of our pipelines: the Inference step.
This stage loads the model artifact from the model registry and runs batch predictions on preprocessed data.
In theory, this step should load the model from a deployed endpoint, but for the sake of simplicity, we haven’t considered cloud deployment in this project.
By using the Sklearn artifact provided by Mlflow, we can easily load and perform batch prediction using model.predict(batch)
.
The prediction is then outputted as the dag’s output usingreturn
. We can also imagine storing the data directly into a database.
import logging
from pathlib import Path
import json
from typing import List
import mlflow
import pandas as pd
from steps.config import MlFlowConfig
LOGGER = logging.getLogger(__name__)
class InferenceStep:
"Get the model from the model registry and predict in batch"
def __call__(self, batch_path: Path) -> List[int]:
"""Use the MLFlow artifact built-in predict.
Args:
batch_path (Path): Input batch_path
Return (List[int]):
Predictions
"""
model = self._load_model(
registered_model_name=MlFlowConfig.registered_model_name
)
batch = self._load_batch(batch_path)
if model:
# Transform np.ndarray into list for serialization
prediction = model.predict(batch).tolist()
LOGGER.info(f"Prediction: {prediction}")
return json.dumps(prediction)
else:
LOGGER.warning(
"No model used for prediction. Model registry probably empty."
)
@staticmethod
def _load_model(registered_model_name: str):
"""Load model from model registry.
Args:
registered_model_name (str): Name
Returns:
Model artifact
"""
mlflow.set_tracking_uri(MlFlowConfig.uri)
models = mlflow.search_registered_models(
filter_string=f"name = '{registered_model_name}'"
)
LOGGER.info(f"Models in the model registry: {models}")
if models:
latest_model_version = models[0].latest_versions[0].version
LOGGER.info(
f"Latest model version in the model registry used for prediction: {latest_model_version}"
)
model = mlflow.sklearn.load_model(
model_uri=f"models:/{registered_model_name}/{latest_model_version}"
)
return model
else:
LOGGER.warning(
f"No model in the model registry under the name: {MlFlowConfig.registered_model_name}."
)
@staticmethod
def _load_batch(batch_path: Path) -> pd.DataFrame:
"""Load dataframe from path"""
batch = pd.read_parquet(batch_path)
LOGGER.info(f"Batch columns: {batch.columns}")
return batch
We are now done with each step that composes the training and the inference pipeline. Let’s connect them using Airflow.

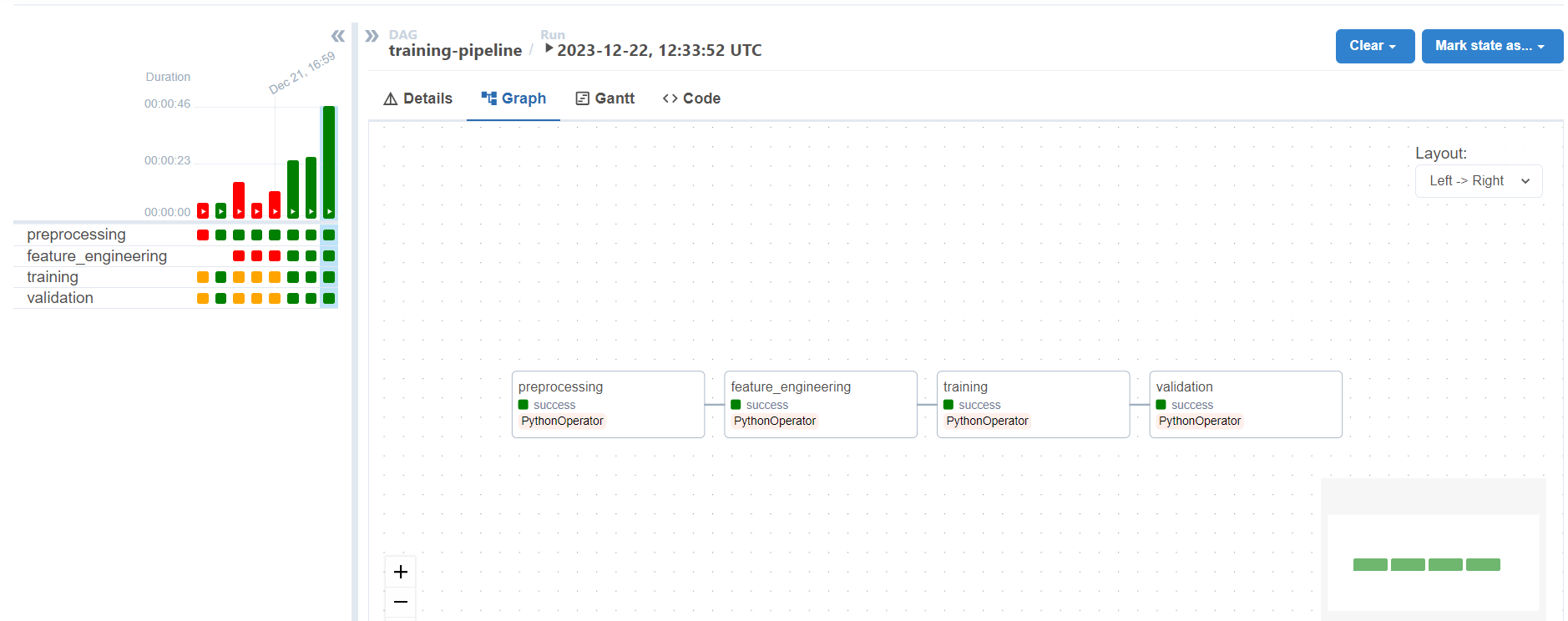

Build DAGs with Airflow
The process of building dags is now straightforward.
Airflow dags are composed of Operators, objects designed to perform a task, such as BashOperator
or PythonOperator
. There are various types of operators handled by Airflow.
The library also provides hooks for the pipeline author to define their own parameters, macros, and templates, such as Mlflow or Sagemaker.
This is why using an orchestrator in your project is so handy: from one place, you control every step of your pipeline, each of them requiring its own requirements or computation resource.
To build a dag with Airflow, we need to instantiate the DAG
class object using with
. For our purpose, we don’t need to schedule the pipeline, meaning that the pipeline will run only if triggered manually.
from airflow import DAG
default_args = {
"owner": "user", # user's name
"depends_on_past": False, # keeps a task from getting triggered if the previous schedule for the task hasn't succeeded.
"retries": 0, # Number of retries for a dag
"catchup": False, # Run the dag from the start_date to today in respect to the trigger frequency
}
with DAG(
"training-pipeline", # Dag name
default_args=default_args, # Default dag's arguments that can be share accross dags
start_date=datetime(2023, 12, 19), # Reference date for the scheduler (mandatory)
tags=["training"], # tags
schedule=None, # No repetition
) as dag:
Don’t hesitate to check the official documentation to dig more into the tool. The possibilities Airflow provides are quite wide.
# training_pipeline.py
from datetime import datetime
from airflow import DAG
from airflow.operators.python import PythonOperator
from steps.preprocess_step import PreprocessStep
from steps.train_step import TrainStep
from steps.condition_step import ConditionStep
from steps.feature_engineering_step import FeatureEngineeringStep
from steps.utils.data_classes import PreprocessingData, FeaturesEngineeringData
from steps.config import (
TRAINING_DATA_PATH,
TrainerConfig,
ConditionConfig,
PreprocessConfig,
FeatureEngineeringConfig,
)
# Preparation
inference_mode = False
preprocessing_data = PreprocessingData(
train_path=PreprocessConfig.train_path,
test_path=PreprocessConfig.test_path
)
feature_engineering_data = FeaturesEngineeringData(
train_path=FeatureEngineeringConfig.train_path,
test_path=FeatureEngineeringConfig.test_path,
encoders_path=FeatureEngineeringConfig.encoders_path,
)
target = FeatureEngineeringConfig.target
# Steps
preprocess_step = PreprocessStep(
inference_mode=inference_mode,
preprocessing_data=preprocessing_data
)
feature_engineering_step = FeatureEngineeringStep(
inference_mode=inference_mode,
feature_engineering_data=feature_engineering_data
)
train_step = TrainStep(
params=TrainerConfig.params
)
condition_step = ConditionStep(
criteria=ConditionConfig.criteria,
metric=ConditionConfig.metric
)
default_args = {
"owner": "user", # user's name
"depends_on_past": False, # keeps a task from getting triggered if the previous schedule for the task hasn't succeeded.
"retries": 0, # Number of retries for a dag
"catchup": False, # Run the dag from the start_date to today in respect to the trigger frequency
}
with DAG(
"training-pipeline", # Dag name
default_args=default_args, # Default dag's arguments that can be share accross dags
start_date=datetime(2023, 12, 19), # Reference date for the scheduler (mandatory)
tags=["training"], # Tags
schedule=None, # No repetition
) as dag:
preprocessing_task = PythonOperator(
task_id="preprocessing",
python_callable=preprocess_step,
op_kwargs={"data_path": TRAINING_DATA_PATH},
)
feature_engineering_task = PythonOperator(
task_id="feature_engineering",
python_callable=feature_engineering_step,
op_kwargs={
"train_path": preprocessing_data.train_path,
"test_path": preprocessing_data.test_path,
},
)
training_task = PythonOperator(
task_id="training",
python_callable=train_step,
op_kwargs={
"train_path": feature_engineering_data.train_path,
"test_path": feature_engineering_data.test_path,
"target": target
},
)
validation_task = PythonOperator(
task_id="validation",
python_callable=condition_step,
op_kwargs=training_task.output,
)
preprocessing_task >> feature_engineering_task >> training_task >> validation_task
Here’s how the training pipeline script is built:
- We import every step class object **** and initialize them using their respective
__init__
method. - We initialize the dag using
with DAG()
and compose it withPythonOperator
. - Since we used the
__call__
method, the instantiate step class object becomes a callable. We input the required parameters usingop_kwargs
, which accepts adict
object. - You notice that the argument input of the
validation_task
is actually the output of the last step. If you come back theTrainingStep
class, we outputted themlflow_run_id
required by theConditionStep
class. The output value is stored as an Xcom. See the image below. - Finally, we organize the task using the
>>
operator

The pipeline looks like this:

Notes: Debugging Arflow dags is super easy with logs. Don’t hesitate to add logging to your code as much as possible to be able to debug quickly whatever happens in production once deployed.

We do the same with the inference pipeline:
from datetime import datetime
from airflow import DAG
from airflow.operators.python import PythonOperator
from steps.preprocess_step import PreprocessStep
from steps.inference_step import InferenceStep
from steps.feature_engineering_step import FeatureEngineeringStep
from steps.utils.data_classes import PreprocessingData, FeaturesEngineeringData
from steps.config import (
FeatureEngineeringConfig,
INFERENCE_DATA_PATH,
PreprocessConfig,
)
# Preparation
inference_mode = True
preprocessing_data = PreprocessingData(
batch_path=PreprocessConfig.batch_path
)
features_engineering_data = FeaturesEngineeringData(
batch_path=FeatureEngineeringConfig.batch_path,
encoders_path=FeatureEngineeringConfig.encoders_path,
)
# Steps
preprocess_step = PreprocessStep(
inference_mode=inference_mode,
preprocessing_data=preprocessing_data
)
feature_engineering_step = FeatureEngineeringStep(
inference_mode=inference_mode,
feature_engineering_data=features_engineering_data
)
inference_step = InferenceStep()
default_args = {
"owner": "user",
"depends_on_past": False,
"retries": 0,
"catchup": False,
}
with DAG(
"inference-pipeline",
default_args=default_args,
start_date=datetime(2023, 12, 20),
tags=["inference"],
schedule=None,
) as dag:
preprocessing_task = PythonOperator(
task_id="preprocessing",
python_callable=preprocess_step,
op_kwargs={
"data_path": INFERENCE_DATA_PATH
}
)
feature_engineering_task = PythonOperator(
task_id="feature_engineering",
python_callable=feature_engineering_step,
op_kwargs={
"batch_path": preprocessing_data.batch_path
}
)
inference_task = PythonOperator(
task_id="inference",
python_callable=inference_step,
op_kwargs={
"batch_path": features_engineering_data.batch_path
}
)
preprocessing_task >> feature_engineering_task >> inference_task
If we run this pipeline, we get the prediction of the provided batch as an Xcom value:

Conclusions
This concludes this article on building a machine learning pipeline using Airflow coupled with Mlflow.
Not only did we train a model to predict at 82% Precision if a reservation will be canceled, but we also built a complete and robust pipeline for the preprocessing, training, and inference stages. This enables the project to be reproducible, makes model experimentations fast, deployment easier thanks to the model registry, and reduces the risk of data inadequacy by making the preprocessing and feature engineering steps modular and used in both pipelines.
This project served as an opportunity to experiment with Airflow and Mlflow in a real-world scenario. The primary challenge in Machine Learning is not so much about the models or their performances, but rather about how to develop and deploy these models robustly.
I hope this article was informative.
I would like to add that the architectural design outlined in this article is highly contingent on the project requirements and can vary based on business or development needs. For instance, the inference pipeline was constructed with the preprocessing and feature engineering step directly integrated to ensure the data is correctly processed for model predictions. However, in scenarios where a feature store is employed as an intermediate stage before the model "sees" the data, the need for these preprocessing steps in the inference pipeline may be eliminated, requiring only the inference step. Additionally, how predictions are displayed can also differ, whether it’s through an API or directly stored in a database.
For these reasons, coding each step as a modular and independent class object makes the pipeline manageable and adaptable to almost any scenario.
Going further
Some parts of the work can be improved :
- The data analysis can be pushed further and the Shap library could be used to understand the model predictions and estimate the importance of its features.
- Exceptions, along with data validation using Pydantic, can be configured to manage errors originating from outside the pipeline, such as issues with the ingested data. This challenge is quite common in production environments.
- We can incorporate Data Version Control (DVC) and/or leverage a Feature Store to monitor the data used for training models and its lineage. This can be seamlessly implemented thanks to the Airflow orchestrator.
- Since the code is highly modular, it provides an ideal setup for unit tests and integration tests as part of a CI/CD process.
Code repository
You can find the entire code structure on the following link:
GitHub – jeremyarancio/reservation_cancellation_prediction: Predict if a reservation will be…
If you liked this article, feel free to join my newsletter. I share my content about Machine Learning, Mlops, and entrepreneurship.
You can reach out to me on Linkedin, or check my Github.
If you’re a business and want to implement Machine Learning into your product, you can also book a call.
See you around and happy coding!
References
- [1] – Nuno Antonio, Ana de Almeida, Luis Nunes, Hotel booking demand datasets, Data in Brief, Volume 22, 2019, Pages 41–49, ISSN 2352–3409, https://doi.org/10.1016/j.dib.2018.11.126, (license: CC BY 4.0 DEED).
