Apache Airflow 2.7.0 is finally out and we are all excited to see all these notable features being shipped in this latest release. The new version consists of 40 new features, 53 bug fixes, 49 improvements and 15 documentation updates.
The main focus of this release has been security but at the same time, many exciting non-security related features have also been made available.

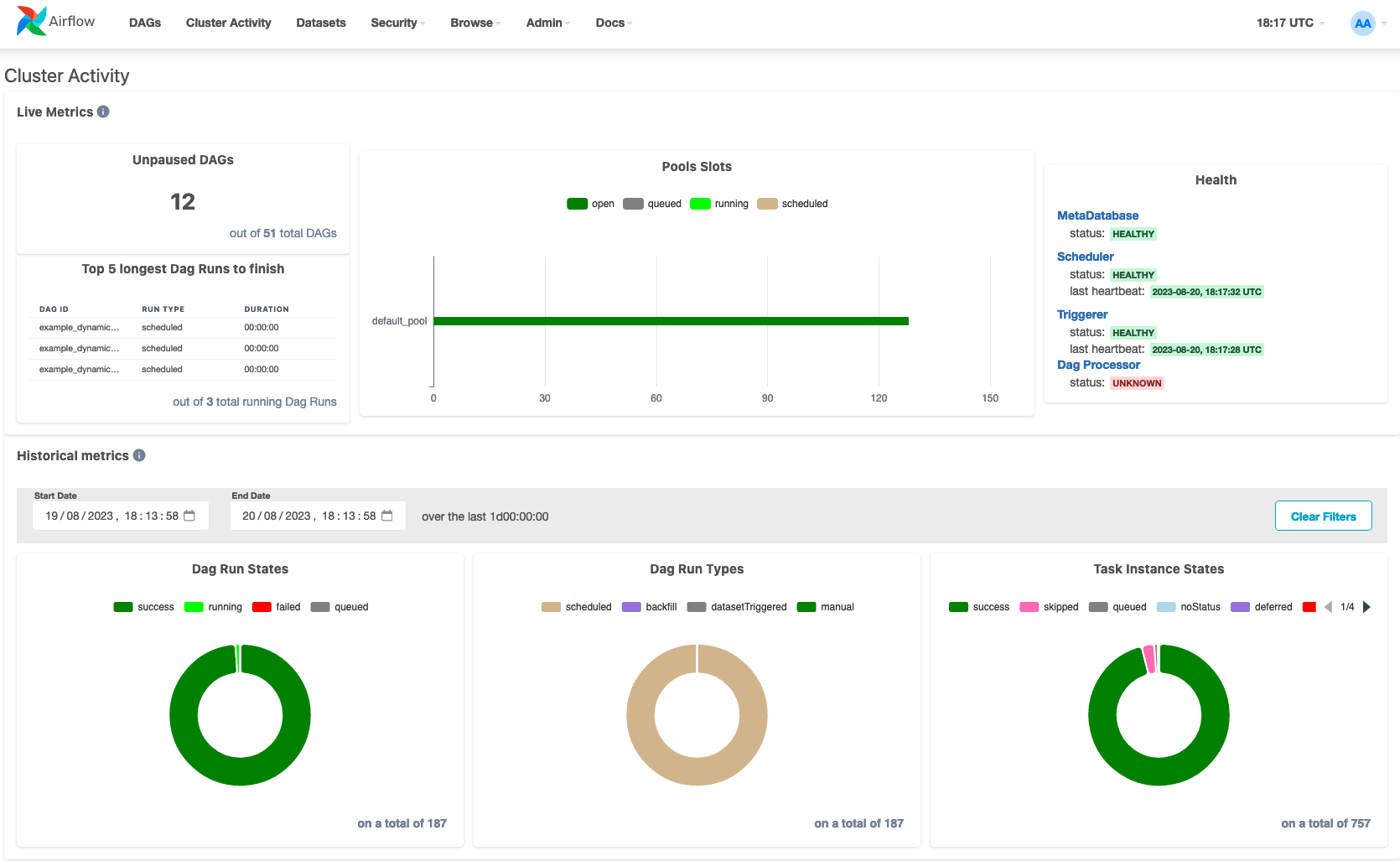

The new Cluster Activity UI
As of Airflow 2.7.0, a new tab is introduced in the top level menu of the Airflow UI and is called Cluster Activity.
The new Cluster Activity UI gives an overview of the overall cluster state, including component health (for MetaDatabase, Scheduler, Triggerer and DAG processor) as well as details about DAG/Task run states and DAG run types.
See when the source code was last parsed
In the past I was really annoyed by the fact that I couldn’t really see whether the changes I was making to the source code of a particular DAG were actually parsed. I would usually have to refresh the page (multiple times) and start looking for the specific areas in the source code that I applied some changes in order to ensure that they have been parsed so I can re-trigger the DAG.

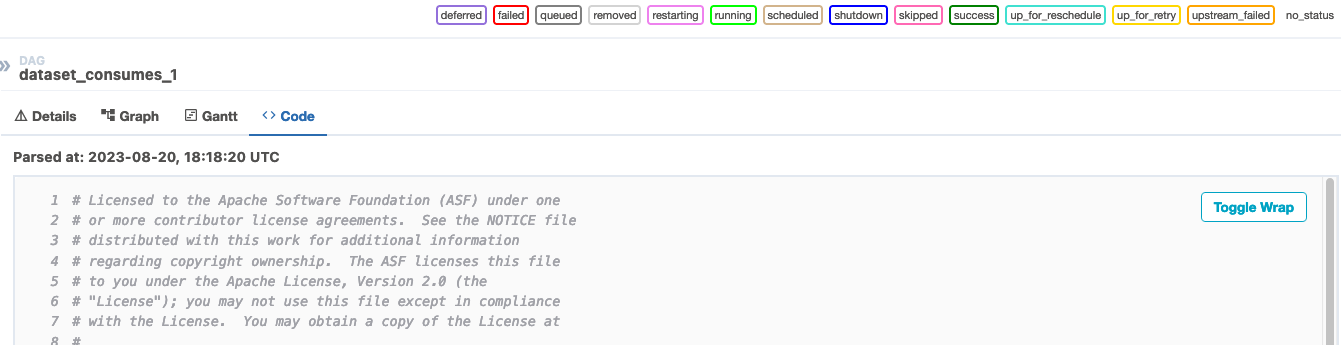

The new Airflow version introduces a Parsed at field within the Code tab of a DAG, indicating the timestamp when the DAG’s source code was last updated.
Simple but yet useful addition!
Keyboard shortcut support

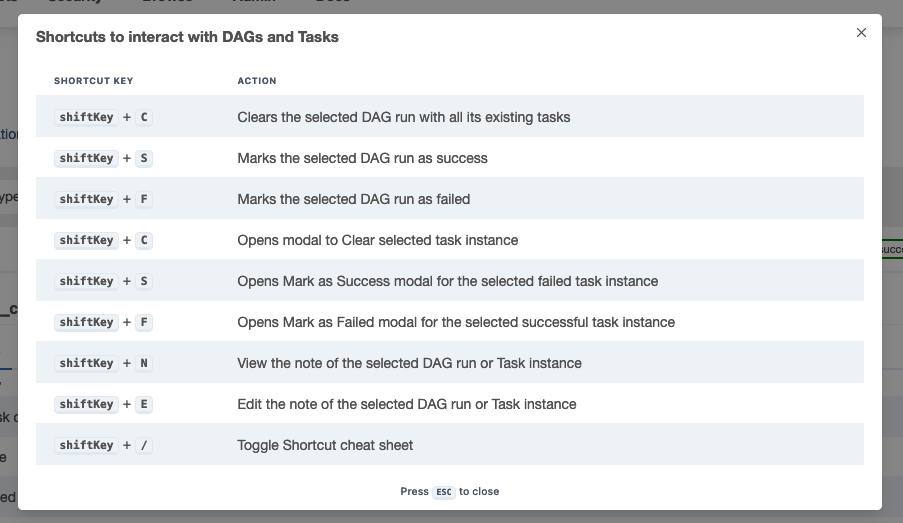

Airflow Grid view now also supports keyboard shortcuts. Once you enter the Grid screen of a DAG, you will notice a note just underneath filtering section, indicating that you can access the list of supported shortcuts, by typing shift + / .
The actions you can take via keyboard shortcuts include clearing a DAG run and marking them as success or failed among others.

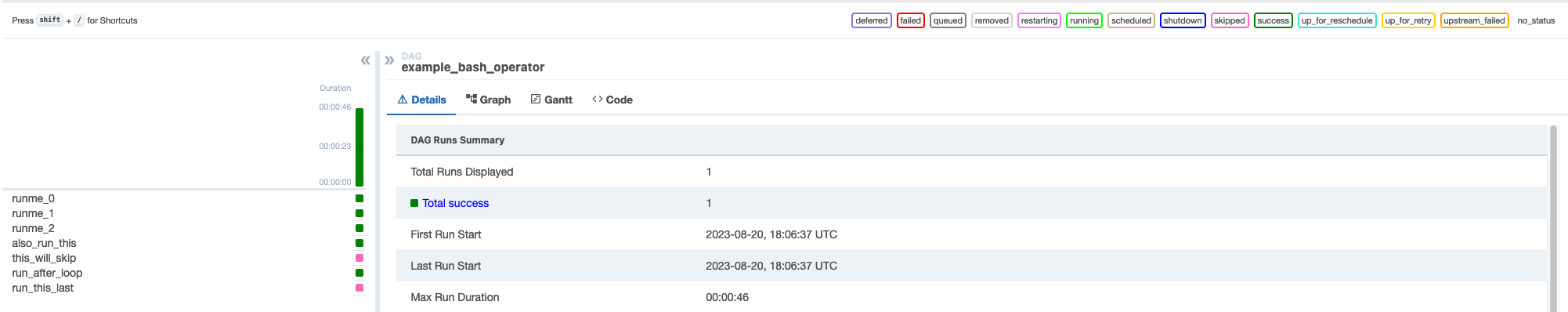

Graph and Gantt views all in one place
The Gantt and Graph views are now moved into the Grid view of DAGs such that it’s easier to navigate between task details, graphs, logs and Gantt views – especially when it comes to viewing more complex DAGs.
Note that the old graph view is also removed and the new Graph View is the default one.
Setup and Teardown tasks
When designing data pipelines, it’s common to create a resource that is used to perform a certain work and then tear it down. The new Airflow release introduced setup and teardown tasks that make this pattern feasible.
Let’s suppose we have a DAG that creates a compute resource, runs a query and finally tears down the previously created resource. Normally, we would have to create three tasks and specify the dependencies as follows:
create_resource >> run_query >> delete_resourceWith the new features, we can now easily mark the first and last tasks as setup and teardown respectively:
create_resource.as_setup() >> run_query >> delete_resource.as_teardown()
create_resource >> delete_resource
# equivalent notation
create_resource >> run_query >> delete_resource.as_teardown(setups=create_resource)Notes:
- When
run_querytask is cleared, bothcreate_resource(setup) anddelete_resource(teardown) tasks will also be cleared - When
run_queryfails, the teardown taskdelete_resourcewill still run create_resourceanddelete_resourcestate won’t be used to determing the success of a DAG run. This means that the DAG will be marked as success even if onlyrun_querytasks is successful
Drops support for end-of-life Python 3.7
Additionally, Airflow 2.7.0 has dropped its support for the end-of-life Python 3.7. In order to make use of Airflow 2.7.0, you need to have one of the following Python versions:
- 3.8
- 3.9
- 3.10
- or, 3.11
Note that Python 3.7 is no longer supported by Python community. If you are still using it (even outside the context of Airflow), make sure to upgrade into a more recent version.
The airflow db migrate command
The db init and db upgrade commands are now deprecated. Instead, you should make use of the airflow db migrate command in order to create or upgrade Airflow database.
Likewise, load_default_connections configuration option is also deprecated. In order to create default connections, you need to run airflow connections create-default-commenctions command, after running airflow db migrate.
Handful of security updates
As mentioned already, the main focus of the latest Airflow release was to make it a bit more secure. Here are some security-related changes:
- The test connection functionality is now disabled by default. If you still need to enable it, you will either specify the
test_connectionflag incoresection ofairflow.cfgor by setting up the environment variableAIRFLOW__CORE__TEST_CONNECTION /dags/*/dagRuns/*/taskInstances/*/xcomEntries/*API endpoint now disables thedeserializeoption- The context now uses Python’s default
default_ssl_contestcontext when working with SMTP SSL connections
Giving Airflow 2.7 a go
If you would like to test new features out I’d recommend doing so by running Airflow via Docker, on your local machine. You can find a step-by-step guide that can help you get it up and running in less than a minute in the link below.
Final Thoughts..
Keeping up with the latest Airflow versions ensures that you get access to the latest features as well as to any new security patches so that you won’t keep yourself awake at nights.
The very latest Airflow release comes with tons of new features, improvements, bug fixes, documentation updates and security patches. It is important to test it out and if possible, upgrade your production instances in order to make the most out of it while also enhancing security.
In this article, we covered only a small subset of the changes introduced in Airflow 2.7.0. You can see the full list of changes shipped as part of the latest release, in the release notes.
